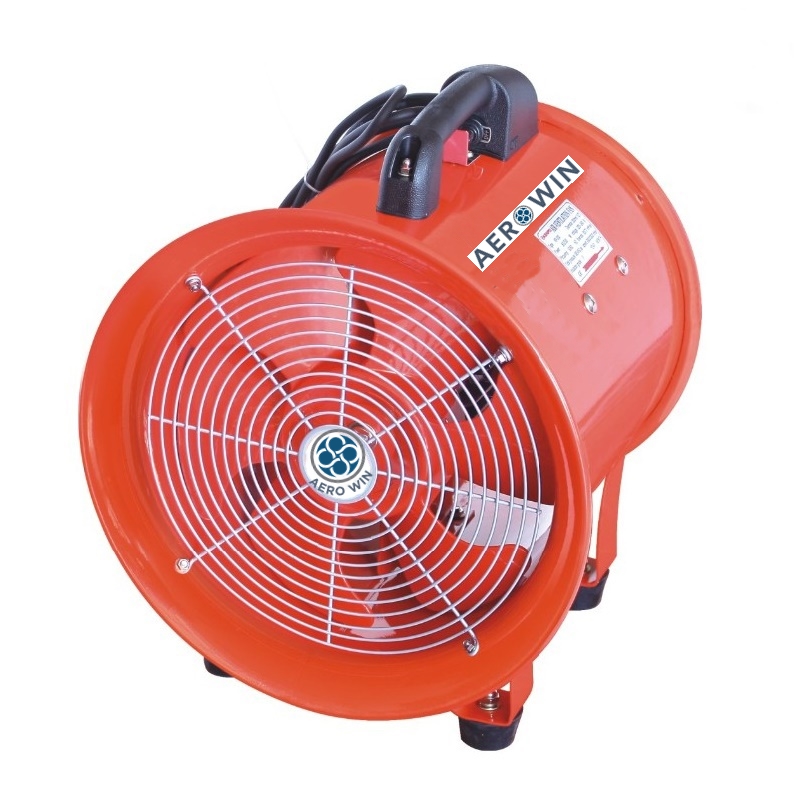

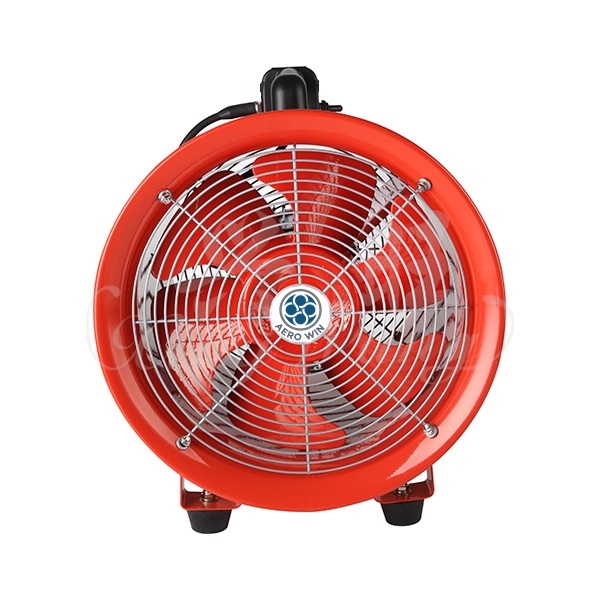

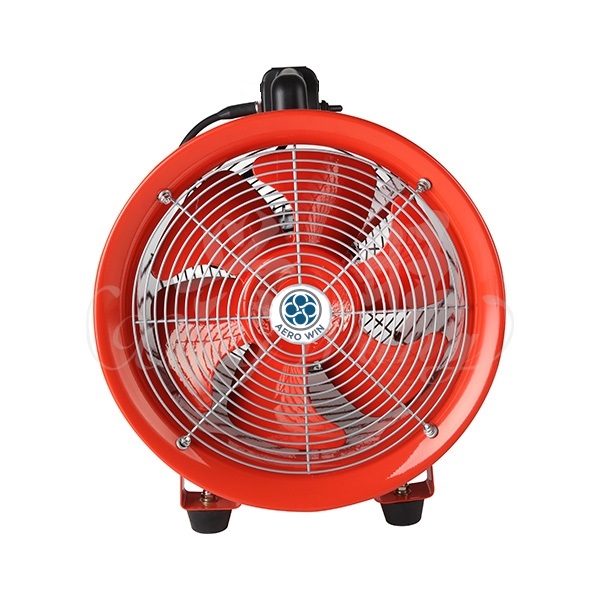

Product Details
Model no. CTF-20,25,30,40 Color: red
Type: Axial Flow Fan Electric Current Type: AC
Mounting: Movable and hand-push fan Blade Material: aluminum
Usage: Ventilation, cooling Usage temperature: 0-70°C
Motor: Pure Copper Impeller/blade: die-casting aluminum alloy
The protection grade is IP55 Certification: CCC, CE, CSA, ROHS, SASO, SAA, EMC
Warranty: Motor 1 Year
| TECHNICAL PARAMETERS | ||||||||||
| Model | Diameter | Voltage | Frequency | Speed | Power | Capacity | Air Flow | Static | Noise | Weight |
| No. | (mm) | (V) | (Hz) | (r/min) | (W) | (m³/min) | (cfm) | (pa) | dB(A) | (kg) |
| CTF-20 | 200 (8″) | 220 | 50/60 | 2800 | 180 | 25 | 900 | 245/295 | 61 | 9 |
| CTF-25 | 250 (10″) | 220 | 50/60 | 2800 | 300 | 45 | 1620 | 295/350 | 66 | 11 |
| CTF-30 | 300 (12″) | 220 | 50/60 | 2800 | 500 | 65 | 2340 | 385/450 | 69 | 15 |
| CTF-40 | 400 (16″) | 220 | 50/60 | 2800 | 1200 | 120 | 4320 | 700/780 | 79 | 25.5 |
